Mitutoyo 543-851E digital odometer (0-25.4mm)

Specifications
Produced by Mitutoyo
Model 543-851E
Made in Japan
Measuring range 0 - 25.4mm
Display 0.0005 / 0.001 / 0.01 mm
Accuracy ±0.0025 mm
Electronic clock
The Mitutoyo digital gauge is a retrograde linear length measuring instrument using an electromagnetic induction reader with a linear encoder on the main shaft body incorporating Mitutoyo's ABSOLUTE technology for accurate determination. measuring position of the ruler as soon as the power is turned on without the need to adjust or reset the ruler. Mitutoyo digital counters produced by modern Japanese technology have the most accurate and reliable in the world, wide measuring range, high accuracy, many styles, suitable mm or inch units with different customer requirements.

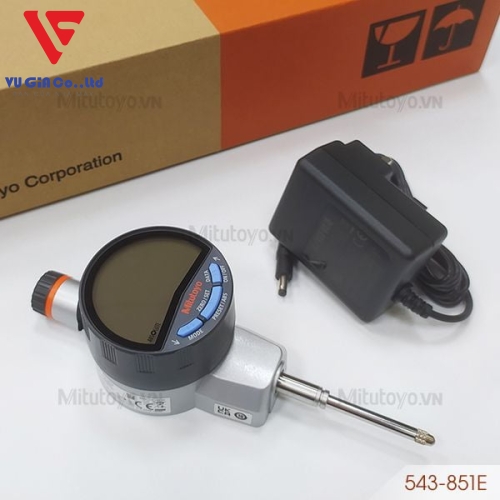

Mitutoyo digital meter 543-851E

Mitutoyo 543-851E electronic meter taken at Mitutoyo.VN

Mitutoyo 543-851E electronic chronometer has a measuring range of 0 - 25.4mm, display: 0.0005 / 0.001 / 0.01 mm, accuracy: ±0.0025 mm. Metric gauges, 11mm character height for improved readability. The measured results are displayed on a clear electronic screen to help users easily read the results quickly.

Applications of electronic counters
- Electronic gauges are used to measure roundness, inversion, Oval, displacement, surface flatness, depth or measure inner diameter, measure material thickness in engineering industries such as construction, mechanical engineering. manufacturing machines, molds, automobiles, electronic components, furniture.

- In addition, the electronic gauge helps to increase the accuracy of the high gauge as well as the materials that require low hardness when combined with the measuring gauge with a high gauge or a dedicated base for the dial.

Notes when using electronic comparator
- When choosing an electronic meter to ensure the correct measuring range and accuracy, the measuring interval is always larger than the change in the size of the part to be checked and the accuracy is smaller than the accuracy of the part to be checked. .

- Before using to check the accuracy, return of the probe shaft and the display indicator, move the probe shaft by hand to ensure that the main shaft of the odometer gently moves the full displayed numbers after removing the hand. Make sure that the probe axis and the indicator display return to the original position before moving.

- When using an electronic meter, the gauge must be placed on a dedicated stand or a separate accessory to ensure that the measuring head is always in contact with the part to be measured, the fixed position of the gauge and the dedicated holder, or The individual accessories do not change during the measurement of the probe.

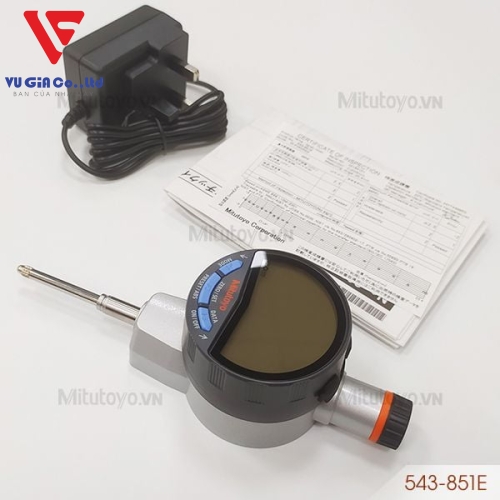

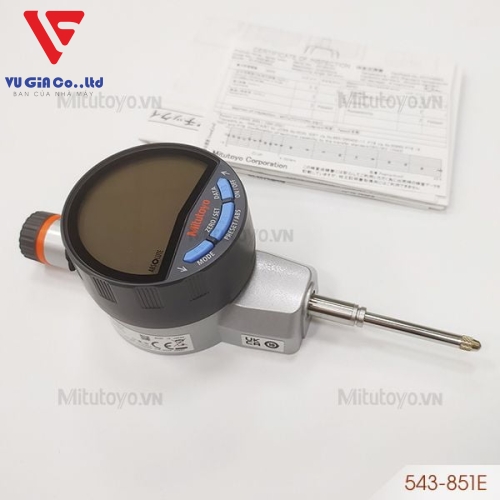

Mitutoyo digital meter 543-851E

Mitutoyo 543-851E electronic meter taken at Mitutoyo.VN

- When using the dial gauge, be very gentle, avoid dropping the dial on the floor, workshop floor, machine tape, hard surfaces. Do not manually move the probe shaft beyond the allowable measuring range of the dial.

- Do not leave the gauge in a humid place or put it together with other repair and processing tools to avoid damage due to collision. After using clean the main shaft and the dial face clean, put the dial in. in the correct position in the container for storage.

- When not in use, press the On/Off button to turn off the power, when the electronic odometer is not stable, please contact us directly to check, clean, and re-evaluate the stability of the meter.
