GTL 3 PROFESSIONAL

Product code: 0 601 015 200

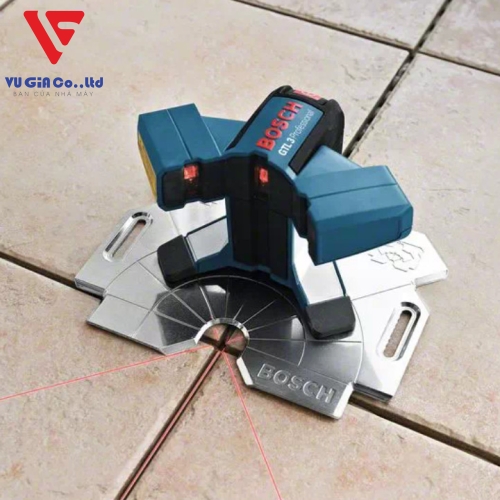

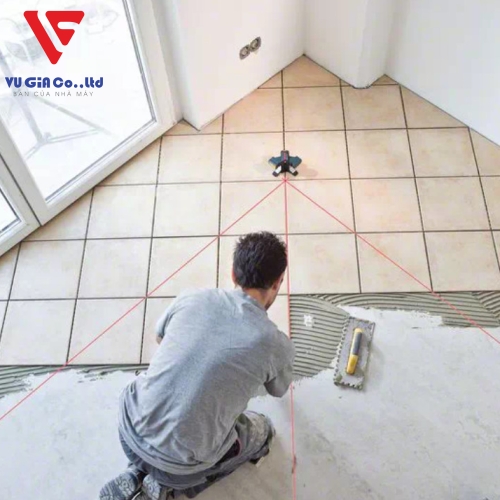

Tiling is quick thanks to the additional line at a 45° angle

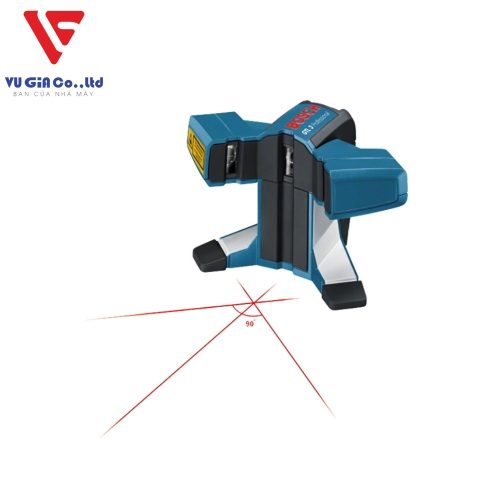

In addition to two straight laser lines at a 90° angle, the device also draws a straight line at a 45° angle to help make precise alignment faster and easier when joining wall and floor tiles.
High precision 0.2 mm/m
Compact design and light weight optimized for use

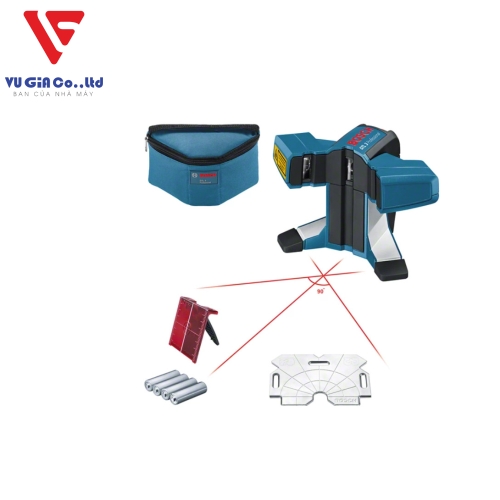

Included in this product sample

Alignment disc

Laser sight plate

Protective bag

4 x 1.5V LR6 batteries (AA)

Views:
2583
Price:
Contact us

Products Information
Comment

SPECIFICATIONS
Additional data
Protection level
IP 54
Operating range
20 m
Slideshow
3 lines
Working scope, value
20 m
Laser diodes
630 – 650 nm
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
The type with laser
2
Operating range with target plate
20 m
Angular accuracy (from 0 to 90°)
±0.2 mm/m* (*plus tolerance depending on usage)
Power supply
4 x 1.5V LR6 (AA) batteries
Operating time (max)
18 h in 2-way mode, 12 h in 3-way mode
Weight, approx
0.44 kg
